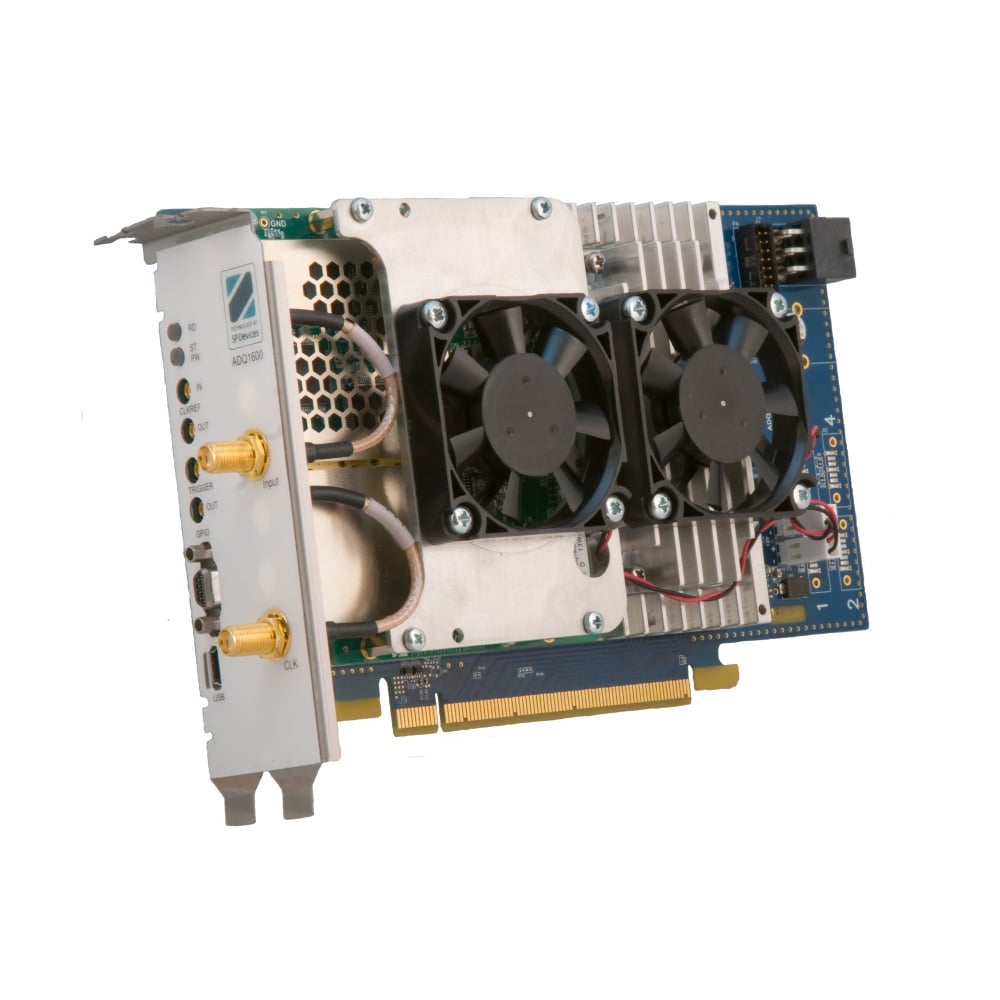

High-perform​​ance 14-bit, 1.6 GSPS digitizer

  • 14 bits vertical resolution
  • Up to 1.6 GSPS sampling rate
  • AC-coupled with up to 750 MHz input bandwidth (2.2 Vpp input range)​
  • 512 Msamples onboard memory
  • Open FPGA for custom real-time signal processing requires DEVDAQ
  • Hardware triggers and GPIO
  • USB 3.0, PXIe, PCIe, MTCA.4 form factors
  • For product technical specifications (see the datasheet)
  • How to use and configure the product and output the data (see the users guide)​
Datasheet
​
​Description

The ADQ1600RF (formerly named ADQ1600) is a world-leading 14 bit digitizer. With its unique 1600 MSPS capture rate, enabled by SP Devices’ ADC interleaving technology ADX, the ADQ1600RF opens for demanding measurements such as RF/IF sampling, high resolution ultra sound imaging and high-speed data recording.

The AFE of the ADQ1600RF is AC-coupled and optimized for spectral purity over a large bandwidth. The analog -3dB bandwidth is 750 MHz.

The digitizer connects to the host via a high-speed USB 3.0 cable for easy to use standalone operation. PXI Express or MTCA.4 µTCA interface is available for systems integration as a modular instrument. A PCIe version for integration into a PC is also available. All interface types allows for streaming of data at high transfer rates.
​

Options ​Comment​
Hardware Options​​​
USB 3.0, PXIe, PCIe, MTCA.4​
 Host PC interf​ace


Firmware options​
FWDAQ Always included. Default data acquisition firmware.​
DEVDAQ​ Optional FPGA development kit based​​ on FWDAQ.


Additional accessories
W5Y Optional 2-year warranty extension (and 5 years in total). ​


 Software
ADCaptureLab Always included. Software for control and configuration. ​
LabVIEW ​
