2GSPS - 14-bit resolution single-to-quad channel digitizer: New product
ADQ14 by SP Devices
Announcing the highest performance data acquisition platform available,
featuring Xilinx's Kintex 7 open FPGA.
The ADQ14's pace setting performance and configurability deliver
competitive advantage to our customers
The ADQ14 family consists of a number of digitizers which all feature
high-speed 14-bit ADCs, 2 GByte on-board memory, variable bias
(DC-offset), and Xilinx Kintex 7 K325T FPGAs.
The products are ordered into three sub-groups - AC-coupled, DC-coupled,
and DC-coupled with variable gain. Further, the family members offer 500,
1 000, and 2 000 MS/s sampling rate and 1, 2, or 4 input channels - all
with 14 bits vertical resolution! This unique and unmatched combination of
high sampling rate and vertical resolution is enabled by SP Devices'
proprietary ADX interleaving technology.
A software development kit (SDK) is included free of charge with the
digitizer, and the on-board Xilinx Kintex 7 K325T is partially available
to the end user through the optional ADQ14 Development Kit. Besides the
pre-installed standard firmware ("FWDAQ") we also offer a number of
optional stand-alone firmwares optimized for different applications:
• Advanced Time-Domain Firmware ("FWATD") - stand-alone firmware option
which includes functions such as filtering, thresholding, and waveform
averaging.
• Pulse Detection Firmware ("FWPD") - stand-alone firmware option which
includes functions such as adaptive baseline, dynamic record length, and
multi-unit synchronization.
• Software Defined Radio (SDR) Firmware ("FWSDR") - stand-alone firmware
option which includes functions such as digital down conversion (DDC),

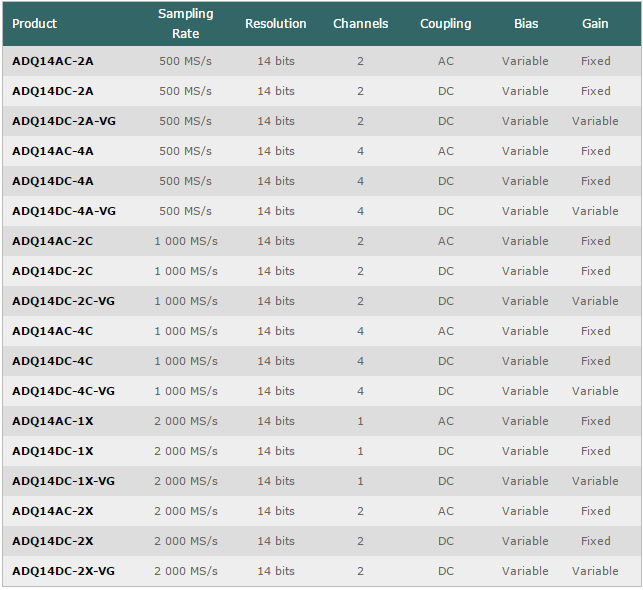

Decimation, and data streaming.A list of available ADQ14 products is shown
in the table below. Please contact our sales department in case you have
any questions.
