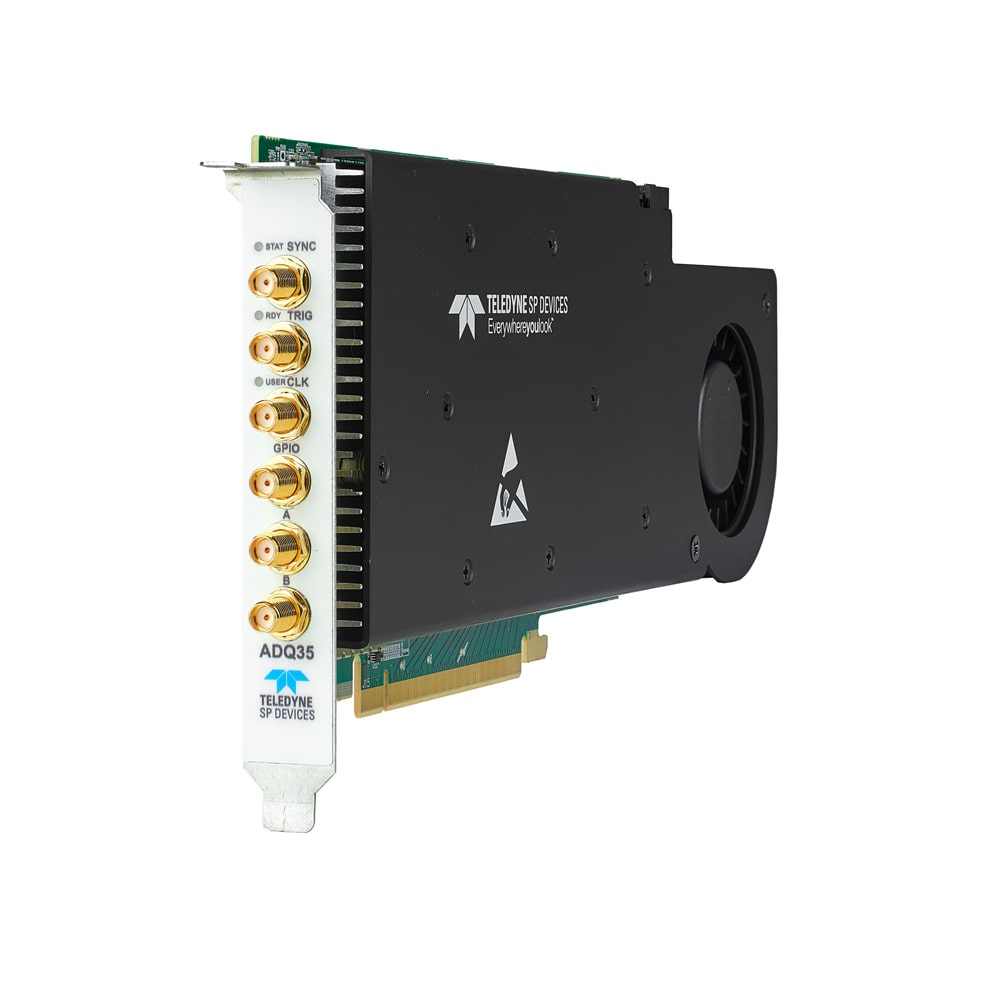

High-perform​​ance 12-bit, 10 GSPS digitizer

  • 12 bits vertical resolution
  • 2 channels at 5 GSPS or 1 channels at 10 GSPS​
  • DC-coupled with up to 2.5​ GHz input bandwidth (0.5 Vpp input range)
  • ​Programmable DC-offset
  • 8 Gbyte onboard memory
  • Open FPGA for custom real-time signal processing requires DEVDAQ
  • Application-specific firmware options
  • Peer-to-peer streaming to GPU at 14 Gbyte/s
  • Hardware triggers and GPIO
  • PCIe form factor
  • For product technical specifications (see the datasheet)
  • How to use and configure the product and output the data (see the users guide)​
DatasheetUser Guide
​
​
Description

ADQ35 offers a two-channel configuration with 5 GSPS s​ampling rate or single-channel at 10 GSPS sampling rate. The programmable DC-offset makes it ideal for sampling unipolar signals. The open onboard Xilinx Kintex Ultrascale KU115 FPGA offers plenty of available resources for custom real-time digital signal processing (DSP). ADQ35 supports peer-to-peer streaming of up to 14 Gbyte/s either to the host PC or to graphics processing units (GPUs).​

Options ​Comment​
Hardware Options​​​
PCIe Host PC interface


Firmware options
FWDAQ Always included. Default data acquisition firmware.
FWATD Optional waveform averaging firmware. ​
FWPD Optional pulse detection firmware. ​
DEVDAQ Optional FPGA development kit based​​ on FWDAQ.


Additional accessories
W5Y Optional 2-year warranty extension (and 5 years in total). ​


 Software
Digitizer Studio Always included. Software for control and configuration. ​
